A Product-Grade Portable USB Ammeter and Low-Power Measurement Analyzer

---

📖 Project Introduction

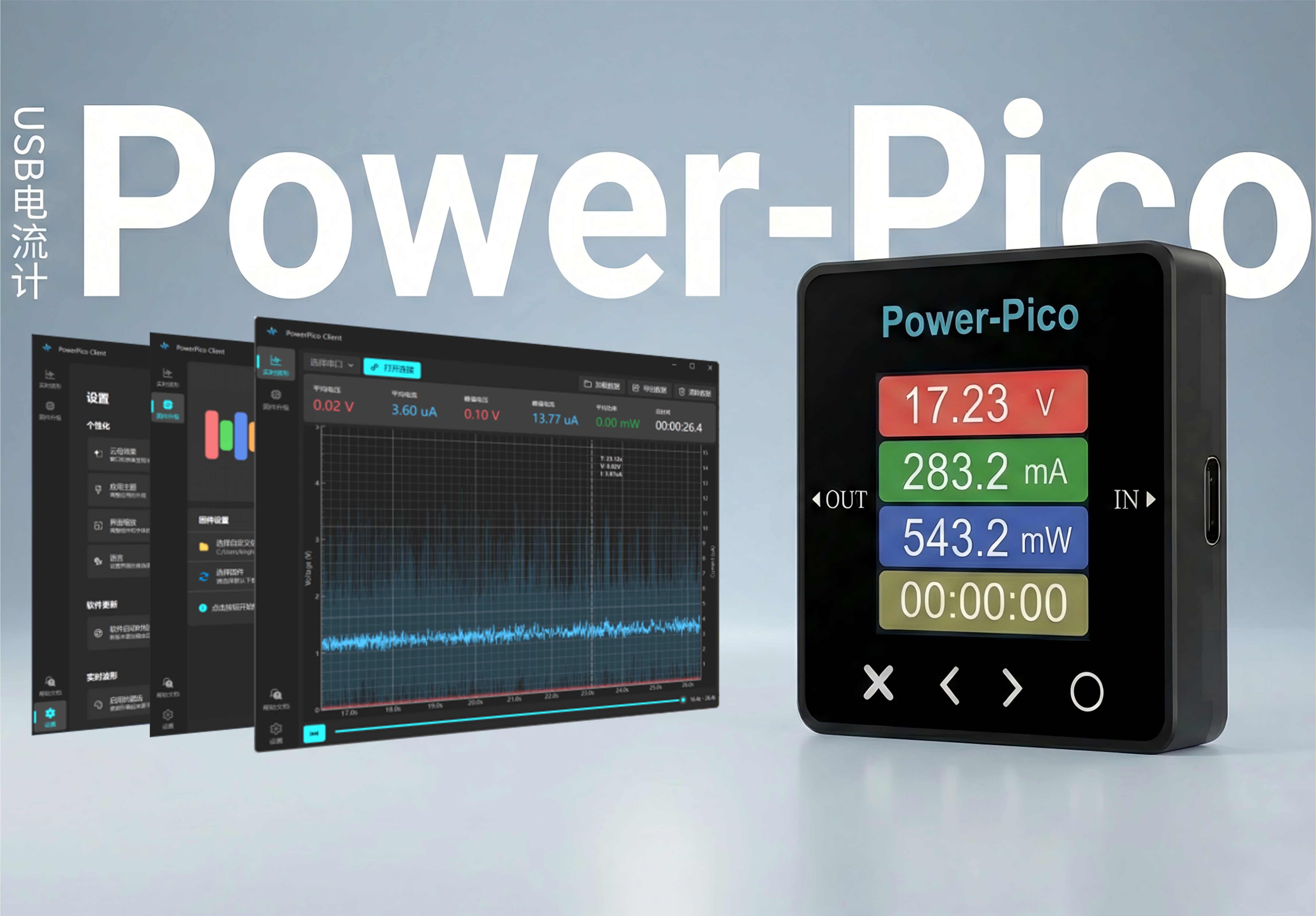

Power-Pico is more than just a USB ammeter. It is a high-precision, low-power analysis tool designed specifically for embedded developers. To overcome the physical limitations of traditional ammeters in the μA-level measurement, Power-Pico adopts an innovative multi-range auto-switching sampling design, achieving full-range coverage from 1\mu A to 5A.

✨ Core Features

• μA-Level High Precision: Utilizes the INA190 zero-drift amplifier with three-resistor segmented sampling.
• Protocol Trigger: Supports PD2.0 PPS protocol triggering, with up to 20V/5A output.
• High-Performance UI: Based on STM32F411 + LVGL v8.3, providing a smooth real-time waveform display.
• Cross-Platform PC Client: Comes with the Power-Pico Client developed with PySide6, supporting data export and real-time power analysis.
• 3D Printed Enclosure: Provides a complete design for a 3D printed enclosure and acrylic panel.

---

🛠️ Hardware Parameter Analysis

Module	Model	Advantage
MCU	STM32F411CEU6	100MHz high frequency, supports DSP instructions to accelerate waveform processing
Current Sensing	INA190	0.5nA input bias current, the core guarantee for μA-level measurement
ADC	12-bit (STM32 Internal)	Achieves high-speed stable sampling above 10kHz with DMA
Screen	1.54" TFT (ST7789)	240x240 resolution, high-contrast display

---

🚀 Quick Replication

1. Hardware

Solder the hardware yourself, or purchase a pre-soldered and assembled kit from Taobao. LCSC Open Source Hub page: https://oshwhub.com/no_chicken/powerpico

2. Firmware Compilation and Flashing

The project is developed based on Keil MDK:

1. Clone the repository: git clone https://github.com/kingham/Power-Pico.git
2. Flash the BootLoader via the SWD port.
3. Compile PowerPico yourself. The generated .bin file can then be flashed using the PowerPico Client.

3. Assembly

The physical assembly is shown in the figure below:

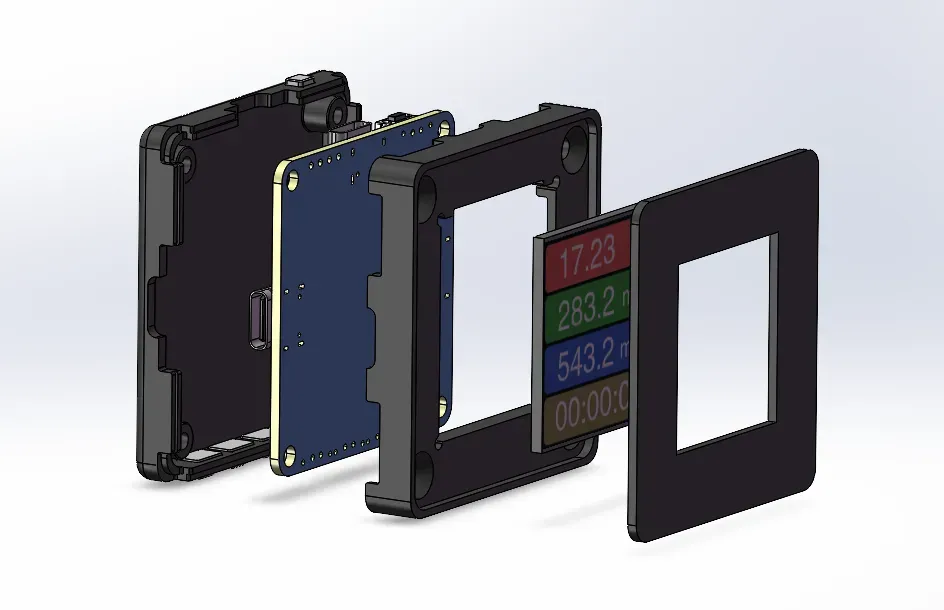

The exploded 3D view is as follows:

4. Running the PC Client

Install and use the PowerPico Client. Currently, it only supports Windows.

🛠️ User Guide

1. Hardware Operation

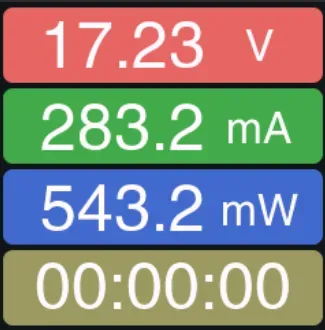

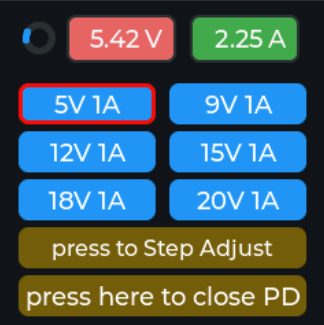

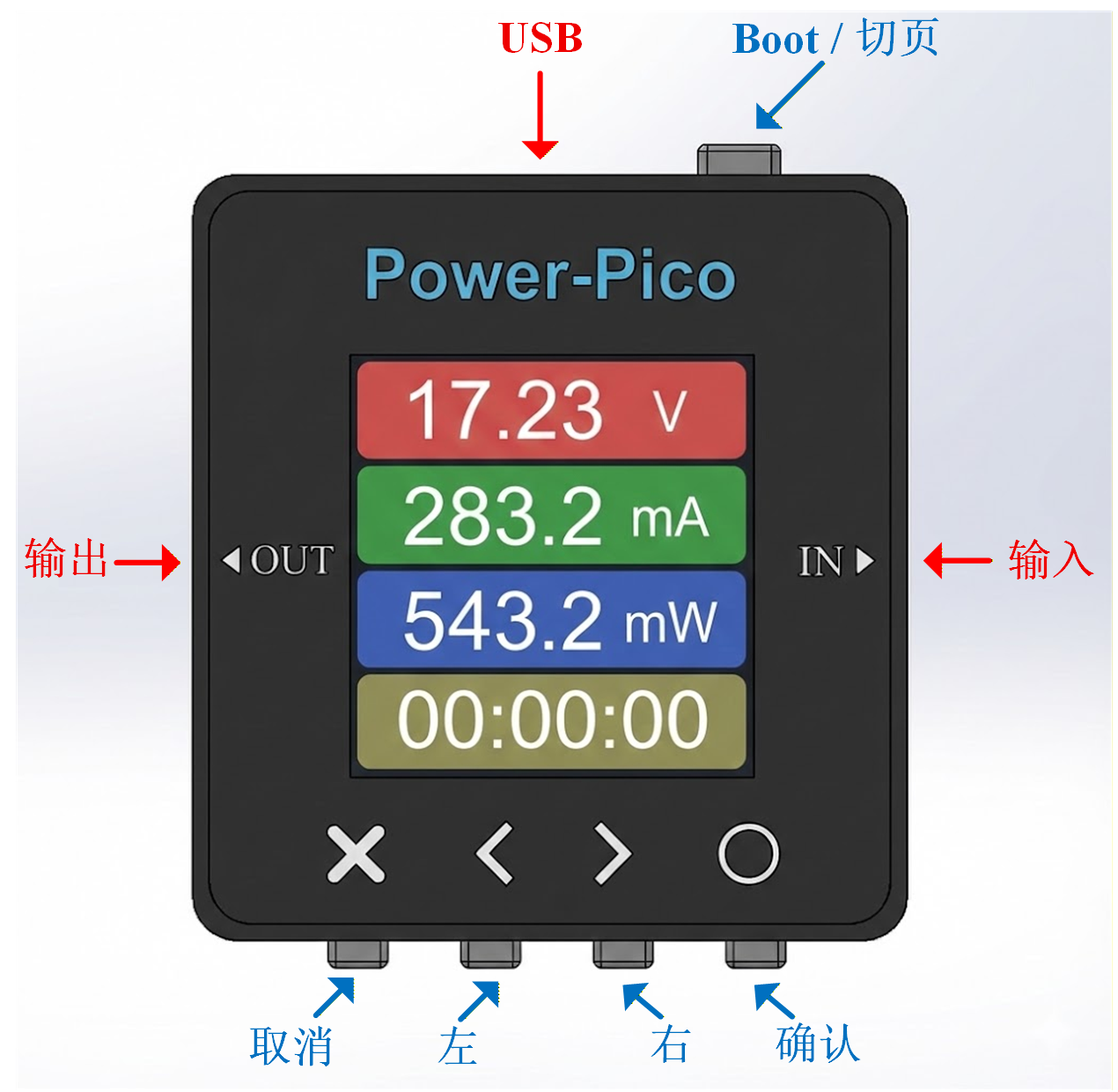

   The button operations and various interface displays of Power-Pico are shown below. The top button is the Page Switch/Boot button. Press and hold the top button before powering on to enter Boot mode for a forced firmware upgrade.

   The Power-Pico hardware currently supports 2 languages: Simplified Chinese/English.












2. Client Operation

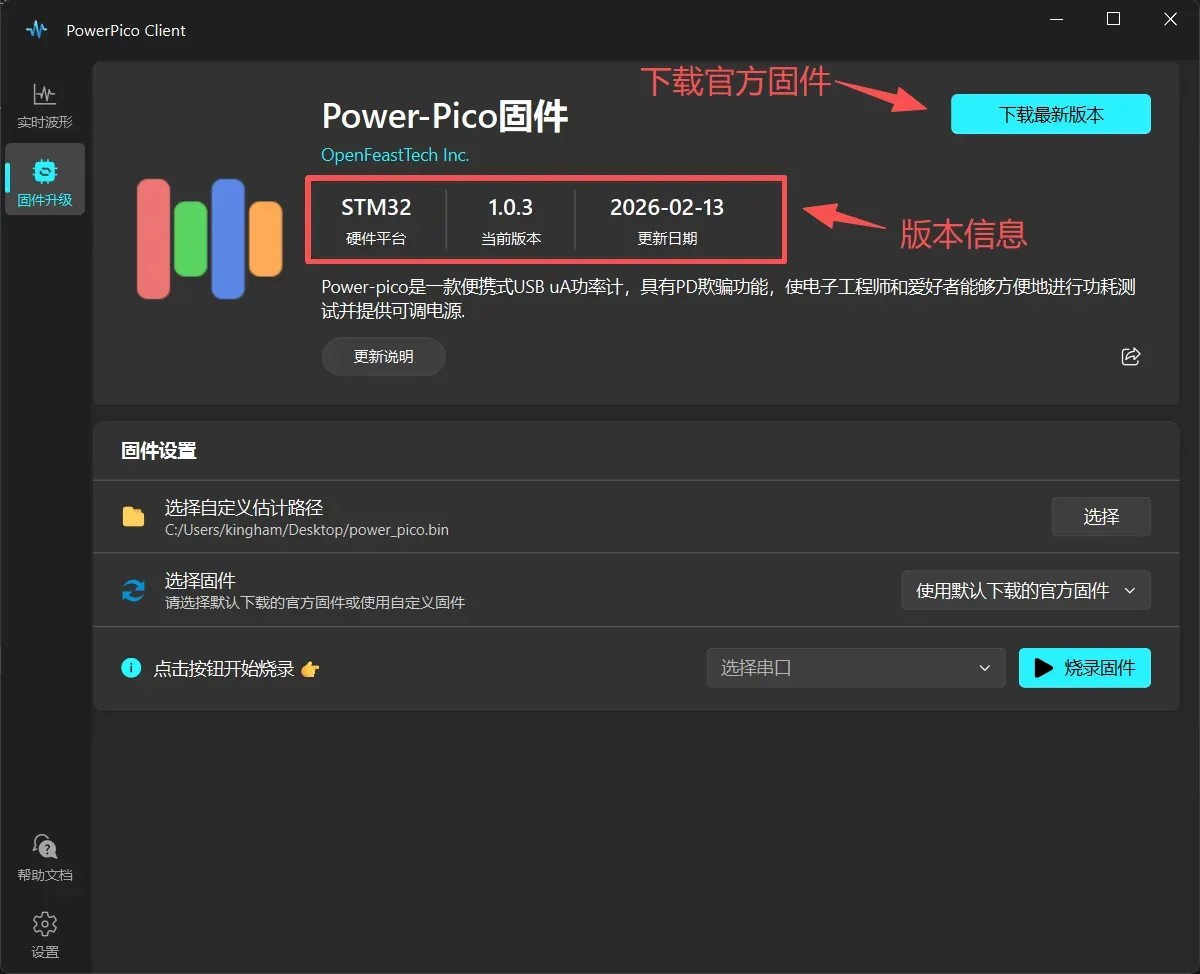

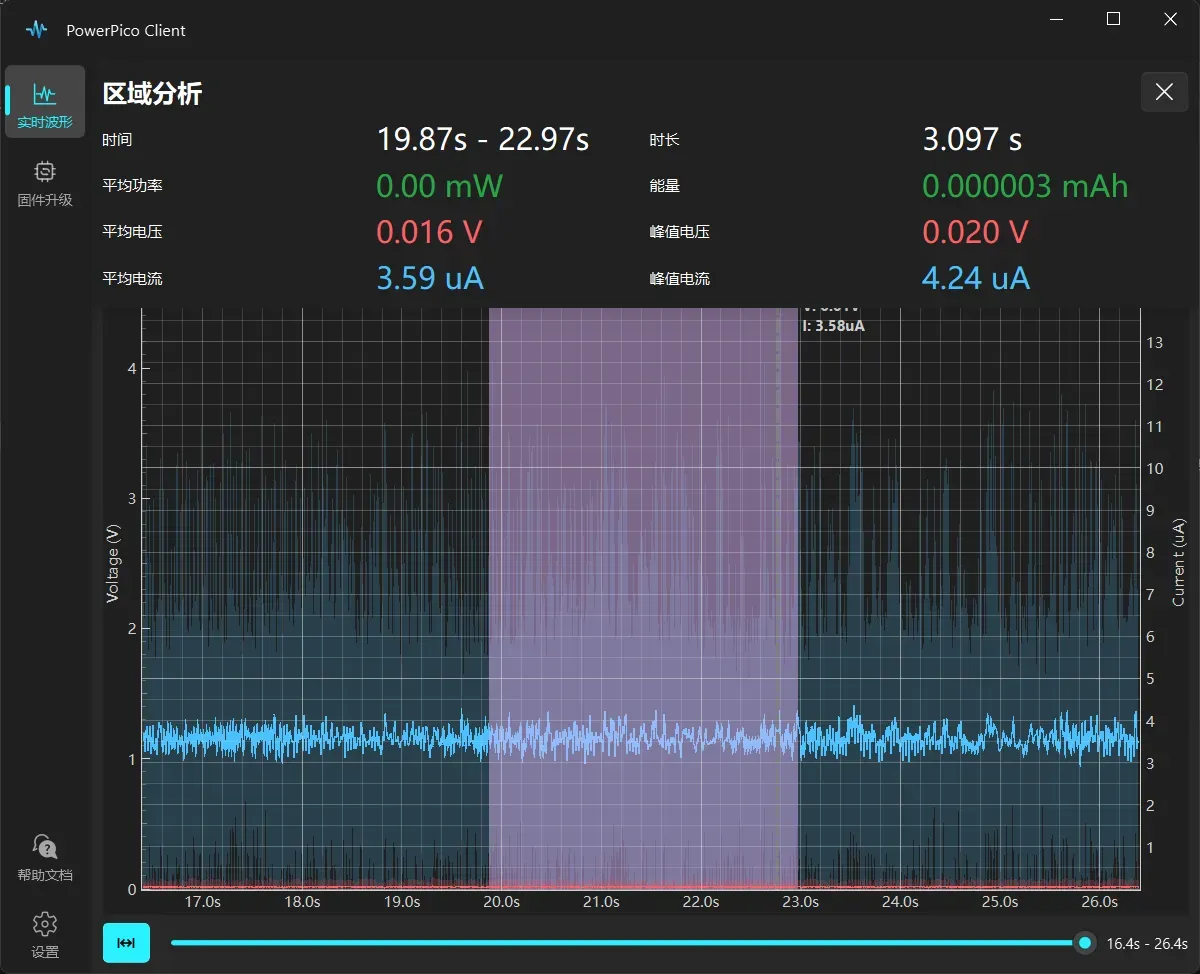

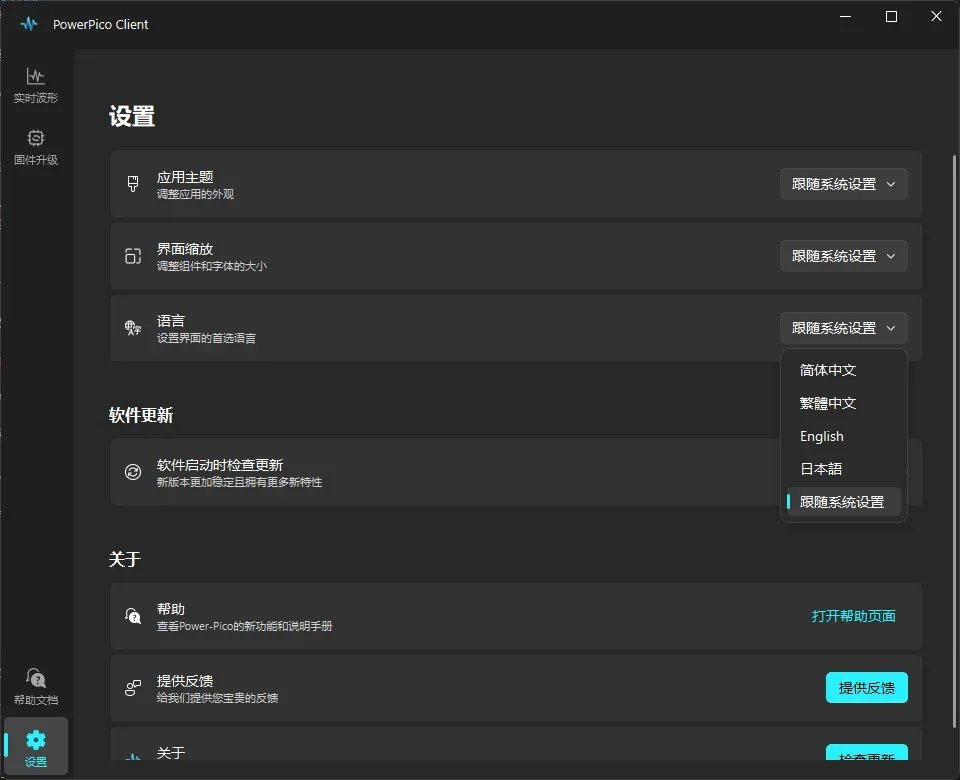

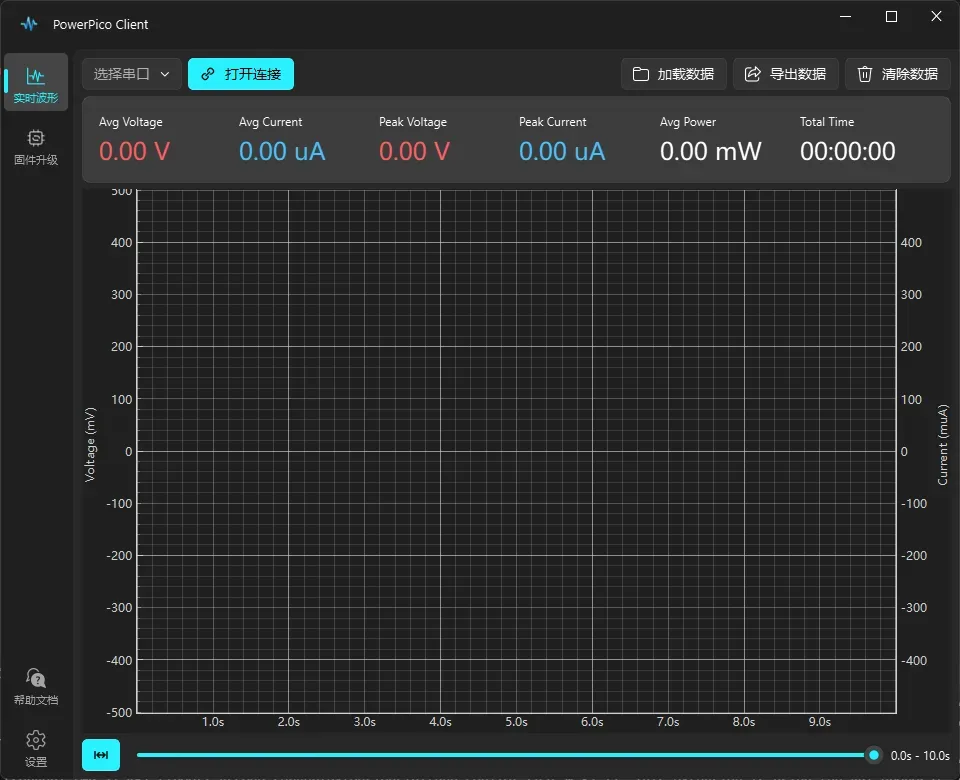

   The PowerPico Client for PC can be used for waveform viewing, recording, exporting, and upgrading the firmware of the hardware. The client currently supports 4 languages: Simplified Chinese/Traditional Chinese/English/Japanese.

   For detailed instructions on using the PowerPico Client, please refer to: Client Operation Manual








📂 Project Structure

Power-Pico/
├── Firmware/        # Firmware, including BootLoader.hex and App.bin
├── Hardware/        # Schematics
├── 3D models/       # STL files for 3D printing the enclosure
└── Software/        # MDK software project for PowerPico, including BootLoader and App

💻 Code Framework

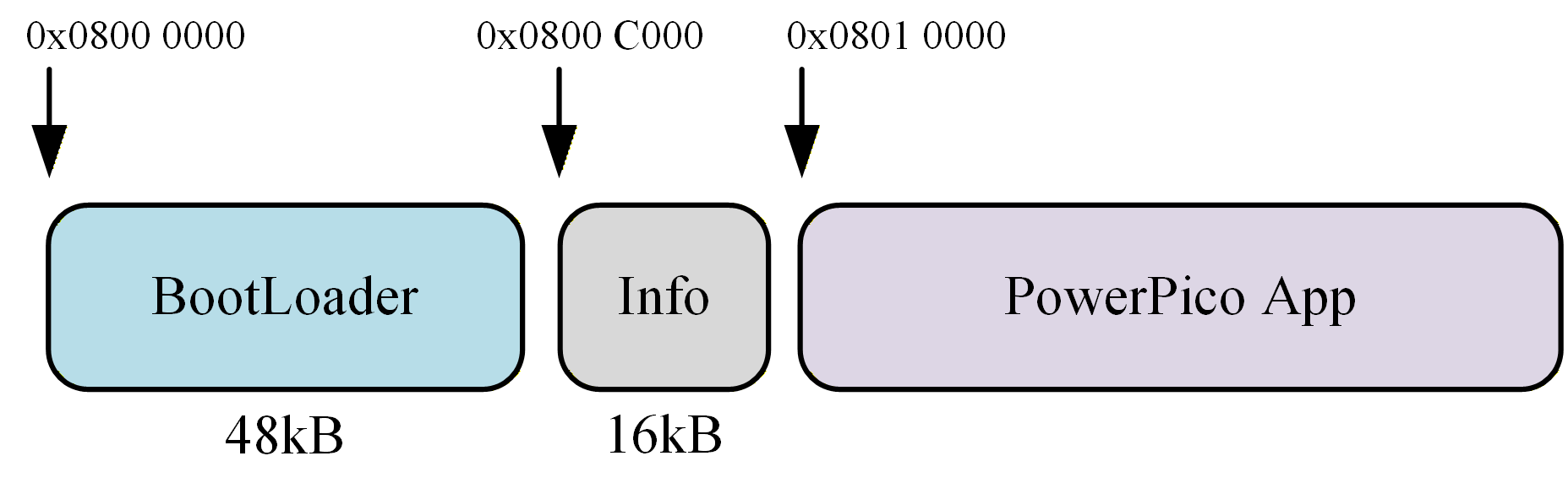

Similar to previous projects, it uses a BootLoader + App structure for easy USB upgrades. The program partitioning is shown below.

• The initial 48kB area of sectors 0, 1, and 2 is the BootLoader area.
• The 16kB area of the 3rd sector is the upgrade information area, used for verifying the integrity of the App on startup. For specific verification details, see the BootLoader code.
• The area starting from the 4th sector at 0x08010000 is the App area (A/B partitioning is not used due to insufficient on-chip Flash).

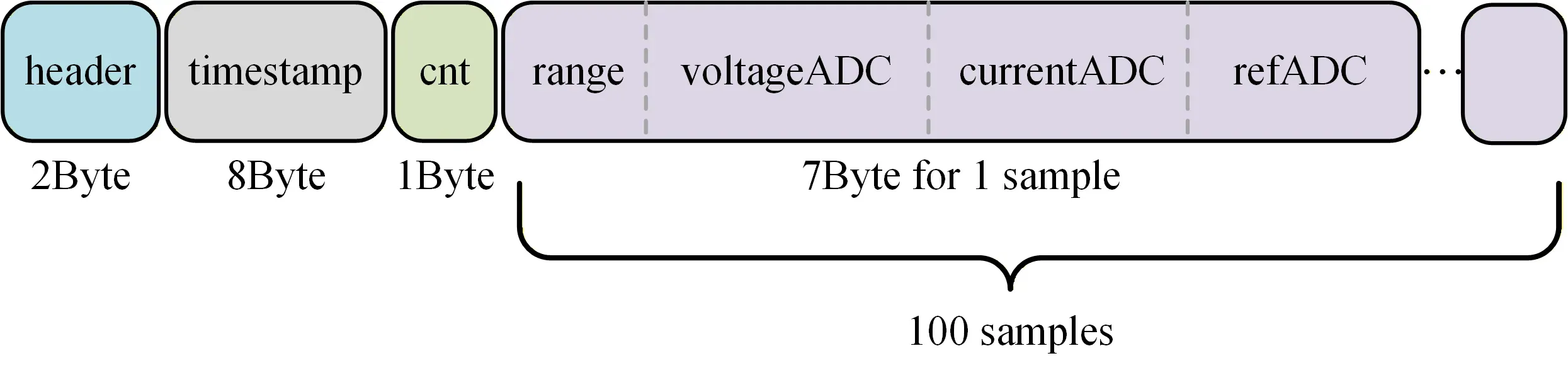

High-speed data transmission is performed via USB. The data packet structure is shown below. Each packet contains 100 data sets, totaling 711 bytes including the header.

📖 References

• [1] PD_Micro - USB-C PD3.0 PPS on ATMega32U4 Arduino board
• [2] IoT Power-CC 3D printed shell structure
• [3] PySide6 user manual
• [4] QFluentWidgets - Make QT Great Again
• [5] PyQtGraph user manual
• [6] STM32 USB vitual serial port driver demo
• [7] LVGL - Embedded graphics library

🤝 Contribute

Welcome to submit Issues or Pull Requests to add new features to the project or fix code bugs!!
